Description

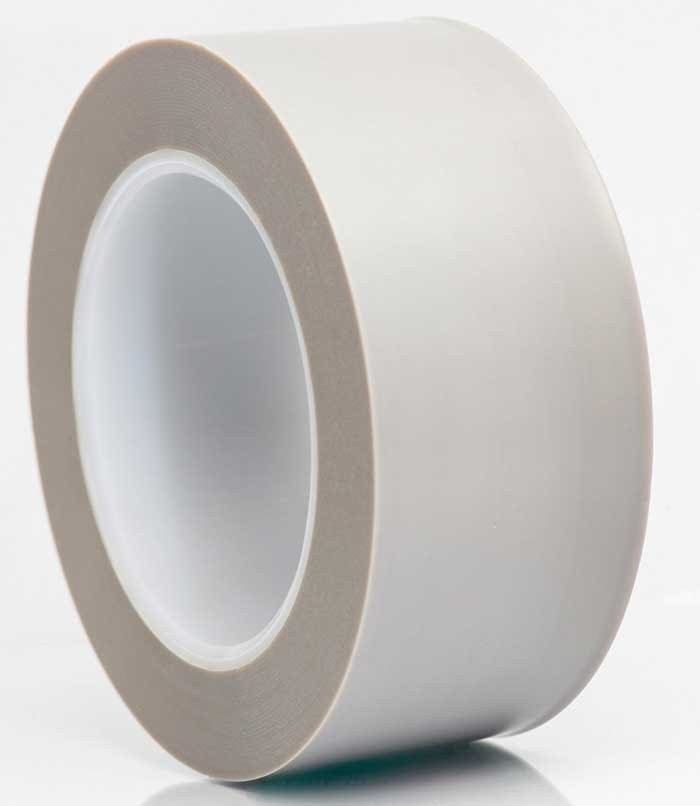

Teflon (PTFE) high temperature tape with silicone adhesive. Used in electrical applications such as coil wraps, separators, transformers, slot liners and harness wrapping where good insulation and heat-resistant properties are needed.
Backing: Teflon
Adhesive: Silicone
Total Thickness: 3.0 mil
Adhesion to Steel 180 degree Peel: 30 oz/inch min
Operating Temp: up to +500° F
Elongation at Break: 125%
Tensile Strength: 13 lbs/in
Length: 36 yds
Available Colors: Grey
OPTIONS:
Color Options: (GY) – Grey
Standard Size Options: 0.50”, 0.75”, 1.00”
Cleanliness Levels
UltraClean | Class 1 (ISO Class 3) to Class 1,000 (ISO Class 6) Standards
Classic Clean | Class 10,000 (ISO Class 7) to Class 100,000 (ISO Class 8) Standards
* Samples are available for most products upon request
