Description

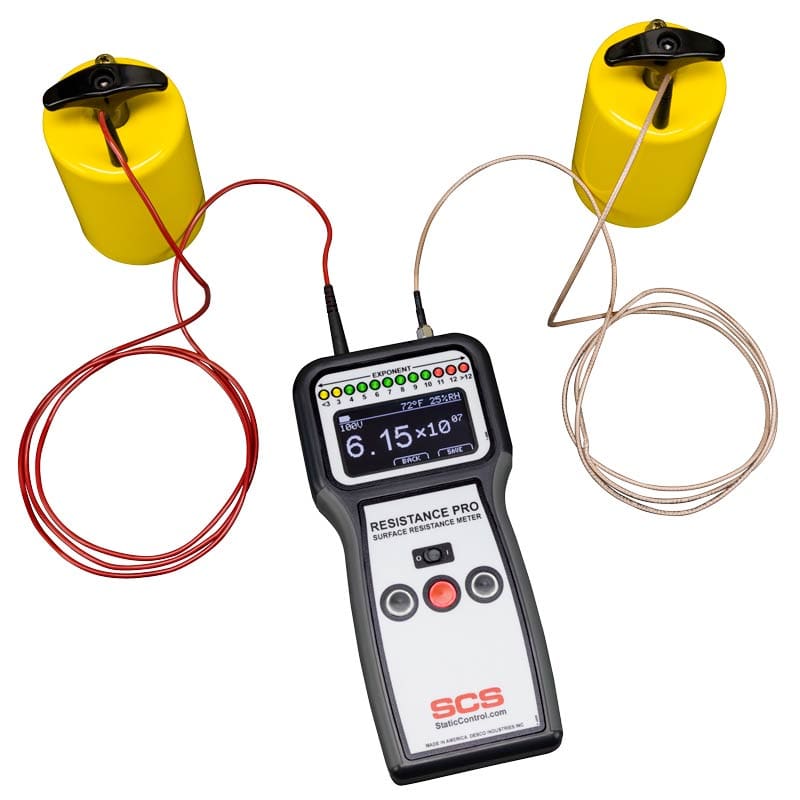

RESISTANCE PRO METER KIT

FEATURES:

* Large OLED Display – Displays resistance mantissa and exponent, temperature, relative humidity and test voltage
* Internal Memory – Stores and recalls up to 100 measurements. Captures resistance, temperature, humidity and test voltage.
* Measurement Stability Modes – Sets the 15-second electrification period for test requirements*

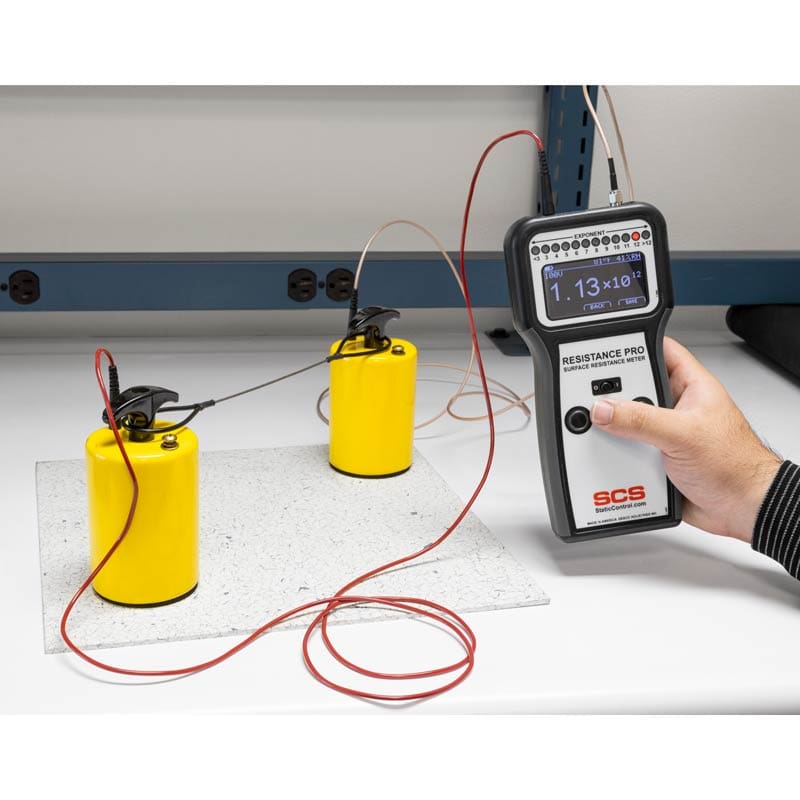

* Electrode Spacers – Spaces the 5 lbs. electrodes to 10 and 36 inches for resistance point-to-point (Rtt) measurement requirements of ANSI/ESD S.1 and ANSI/ESD S4.1
* Measurement Location Labels (Pack of 25) – Labels and tracks areas and materials measured for surface resistance

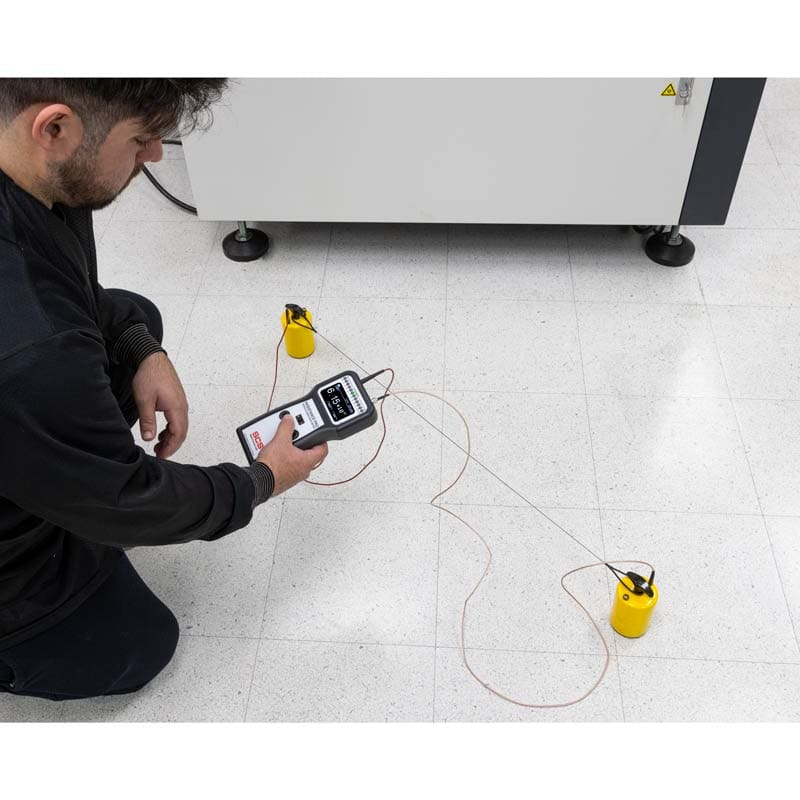

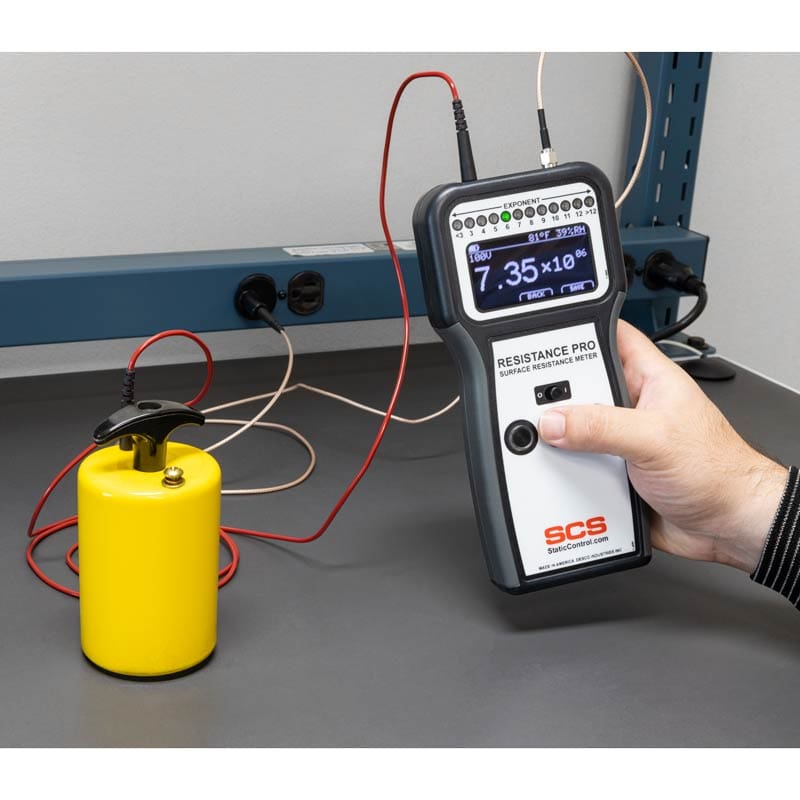

* Digital Compliance Verification Surface Resistance Meter Kit – Measures resistance point-to-point (Rtt) and resistance-to-ground (Rtg) of worksurfaces, flooring systems, garments, packaging, and other materials in accordance with ESD Association documents: ESD TR53, ANSI/ESD S4.1, ANSI/ESD S7.1, ANSI/ESD STM97.1 and others
* Resistance Range: 1.0 x 103 to 1.0 x 1012 Ohms – Determines if a surface is conductive, dissipative or insulative for ESD control applications in electronics manufacturing or handling environments
* Under Load Test Voltages (10V or 100V ±5%) – Meets ANSI/ESD S20.20 resistance testing requirements for product qualification and compliance verification
* 770007 Concentric Ring Probe Accessory  – Measures surface resistance per ANSI/ESD STM11.11 and volume resistance per ANSI/ESD STM11.12 of planar material
* 770765 Handheld Electrode Accessory – Meets resistance measurement requirements of TR53, ANSI/ESD STM97.1 and other documents
* NIST Calibrated – Original Calibration Certificate can be Downloaded Here – Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on the calibration of SCS products, see Calibration
*Made in the United States of America

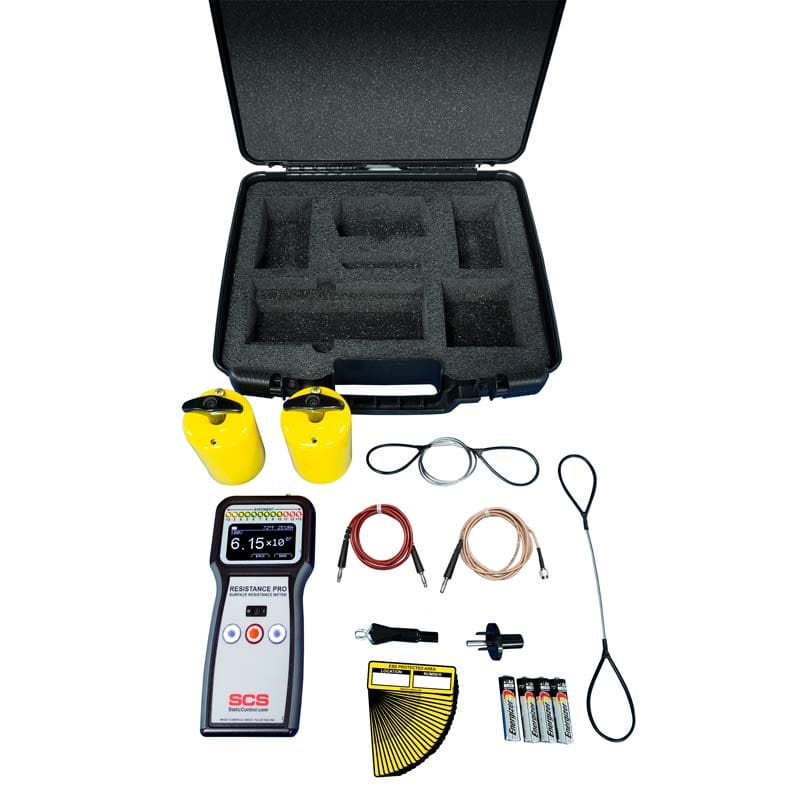

KIT INCLUDES:

• 1 Digital Surface Resistance Meter
• 2 Test Leads, 5′ Length
• 2 5 lbs. Electrodes
• 1 Electrode Spacer, 10″
• 1 Electrode Spacer, 36″
• 4 AA Alkaline Batteries
• 1 Ground Plug Adapter
• 1 Gator Clip
• 25 Measurement Location Labels

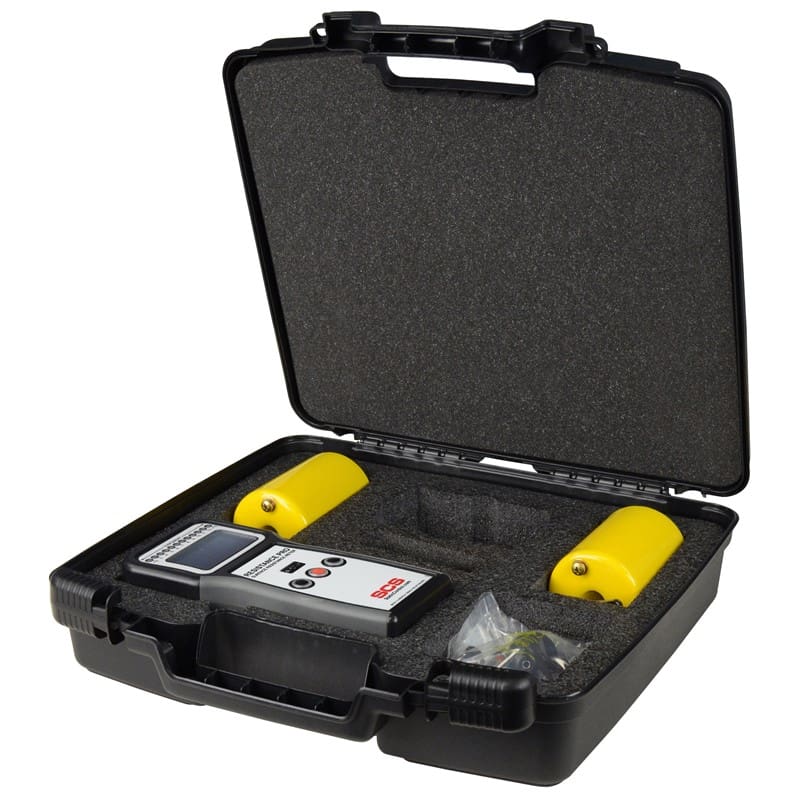

• 1 Plastic Carrying Case
• 1 Certificate of Calibration

MEASUREMENT STABILITY MODES:

• Auto Stabilization enables a 15-second electrification period when the measured resistance is 1 x 1010 ohms or greater to maintain test accuracy.
• Fixed Stabilization complies with ANSI/ESD S4.1 and enables a 15-second electrification period when the measured resistance is 1 x 106 ohms or greater

The 770760 – Resistance Pro Meter Kit is Essential for your ESD Flooring System.
The 770760 – Resistance Pro Meter Kit is Essential for your High Reliability ESD Program.
The 770760 – Resistance Pro Meter Kit is Essential for your Advance ESD Program.
The Resistance Pro Meter Kit Essential for an Effective ESD Moisture Barrier Bag System.
