Multi-Ground Hub – Part # 770042
Price :
$36.00

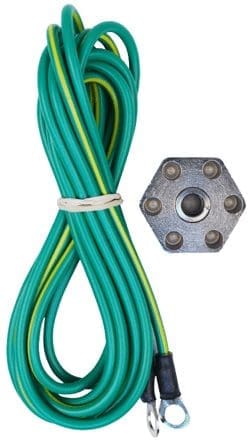

Introducing our New Multi-Ground Hub – Part # 770042.

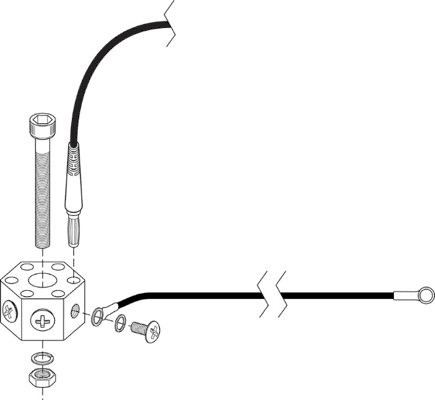

- Brass machined hex block with 6 banana jacks (0.162” – 0.164” +/- 0.002” ID) and 6
screw terminals for #8 ring terminals. - 6’ long, high flex strand copper, 20 gauge, with PVC insulated jacket. Green/yellow
wire terminated with a .200’ I.D. #10 ring terminal. - Six 10-32 x ¼” round screws – Six #10 Split washers – 10-32 x ¼”socket head screw – 10-32
hex nuts – One #10 Split washer. - Banana Plug (not included) Shown for application only.
COMMON POINT GROUND
Per ANSI/EOS/ESD S6.1, Grounding paragraph 4.1.1 “Every element to be grounded at an ESD protected station shall be connected to the same common point ground.” ESD Handbook TR 20.20 paragraph 5.1.3 Basic Grounding Requirements “The first step in ensuring that everything in an EPA is at the same electrical potential is to ground all conductive components of the work area (work surfaces, people, equipment, etc.) to the same electrical ground point. This point is called the common point ground. The next step in completing the ground circuit is to connect the common point ground to the equipment ground (third wire, green).
MULTI GROUND HUB DATA SHEET
Click here to download the Multi Ground Hub Data Sheet.
Introducing our New Multi-Ground Hub – Part # 770042.
- Brass machined hex block with 6 banana jacks (0.162” – 0.164” +/- 0.002” ID) and 6
screw terminals for #8 ring terminals. - 6’ long, high flex strand copper, 20 gauge, with PVC insulated jacket. Green/yellow
wire terminated with a .200’ I.D. #10 ring terminal. - Six 10-32 x ¼” round screws – Six #10 Split washers – 10-32 x ¼”socket head screw – 10-32
hex nuts – One #10 Split washer. - Banana Plug (not included) Shown for application only.
COMMON POINT GROUND
Per ANSI/EOS/ESD S6.1, Grounding paragraph 4.1.1 “Every element to be grounded at an ESD protected station shall be connected to the same common point ground.” ESD Handbook TR 20.20 paragraph 5.1.3 Basic Grounding Requirements “The first step in ensuring that everything in an EPA is at the same electrical potential is to ground all conductive components of the work area (work surfaces, people, equipment, etc.) to the same electrical ground point. This point is called the common point ground. The next step in completing the ground circuit is to connect the common point ground to the equipment ground (third wire, green).
MULTI GROUND HUB DATA SHEET
Click here to download the Multi Ground Hub Data Sheet.
| Weight | 1 lbs |
|---|
