Description

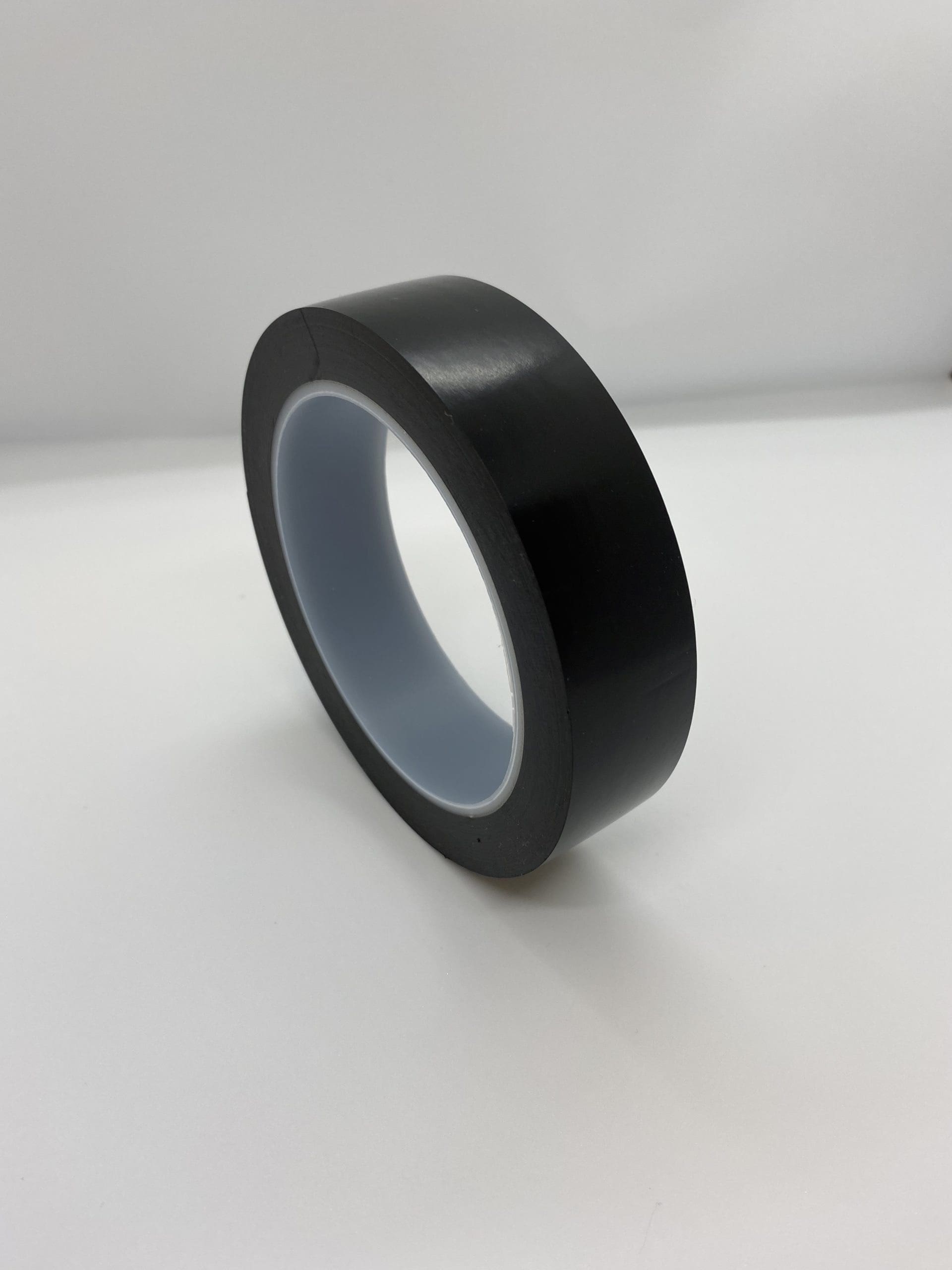

UltraTape’s 1161 Vinyl Electrical Cleanroom Tape is a premium grade all-weather vinyl insulating tape with an aggressive pressure sensitive rubber base adhesive that provides moisture-tight electrical and mechanical protection with minimum bulk. Primary electrical insulation applications up to 600 volts

  *   Compatible with solid dielectric cable insulations
  *   UL Listed: UL510 Standard “Insulating Tape”, Category OANZ, File No. E129200
  *   CSA Listed: CSA-C22.2 No.197 “PVC Insulating Tape”, File No. 048769, Class 9052-02

Backing: Vinyl
Adhesive: Rubber
Total Thickness: 7.0 mils (0.178 mm)
Adhesion to Steel 180 degree Peel:  28 oz/in (3.0 N/cm)
Temperature Rating (UL510): 176°F (80°C)
Flame Retardant (UL510): PASS
Dielectric Strength: 1150 V/mil (45.3 kV/mm)
Length: 22 yds
Available Colors: Black

OPTIONS:

Color Options: (BK) – Black

Standard Size Options: 0.75”, 1.00”

Cleanliness Levels
UltraClean Cleanliness
Class 1 (ISO Class 3) to Class 1,000 (ISO Class 6) Standards
Classic Clean Class 10,000 (ISO Class 7) to Class 100,000 (ISO Class 8) Standards

* Samples are available for most products upon request
